Main Features:

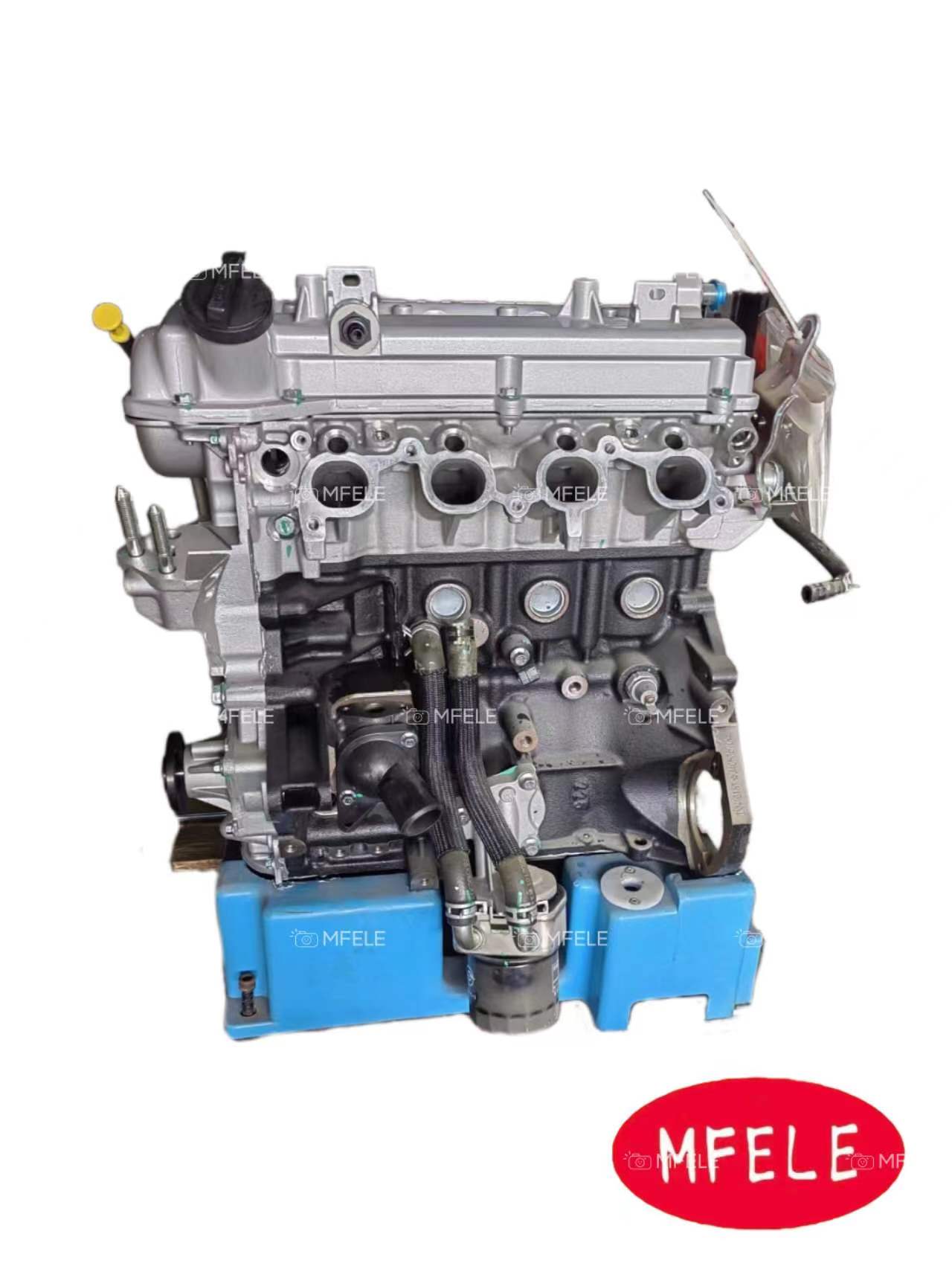

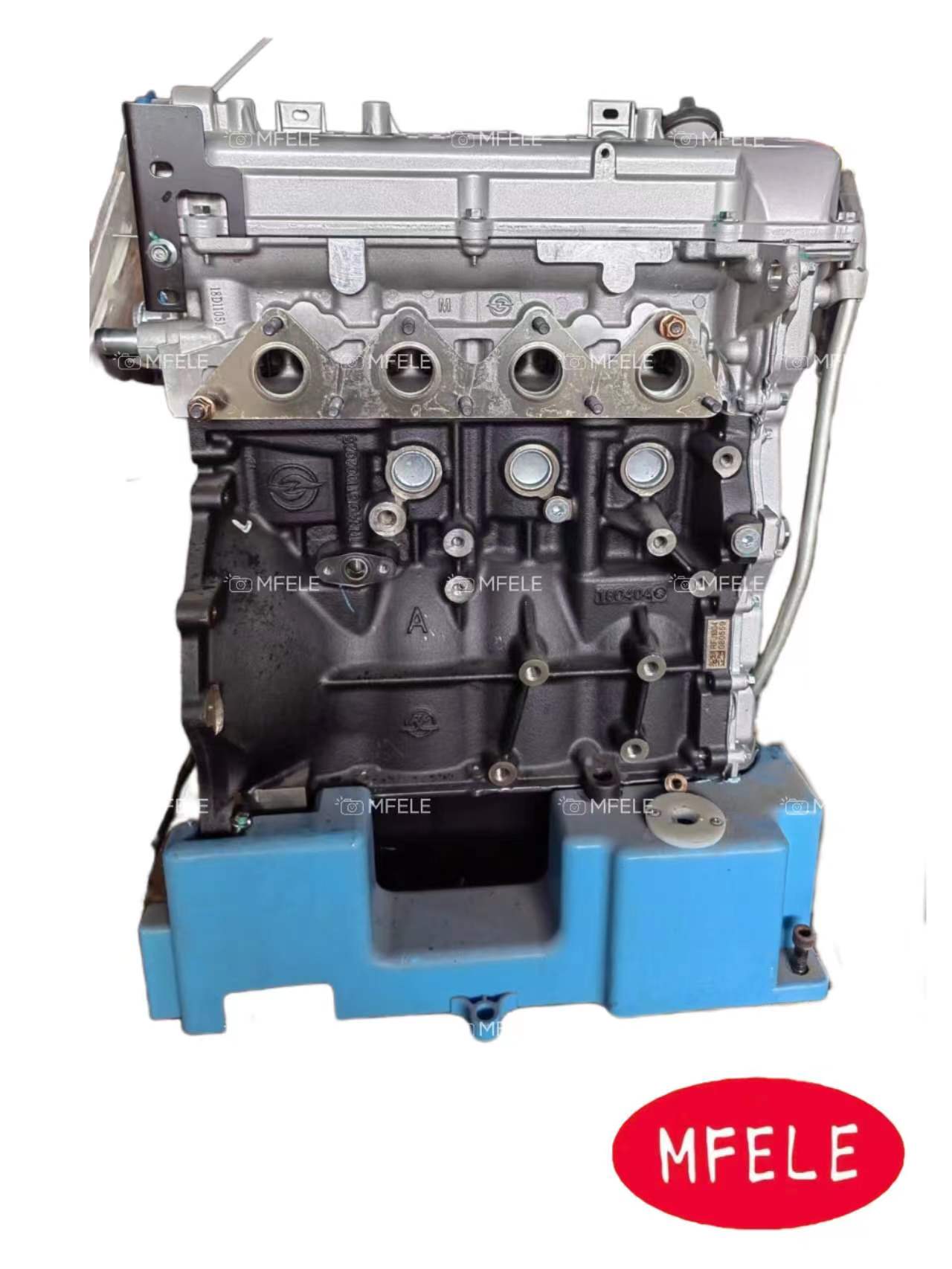

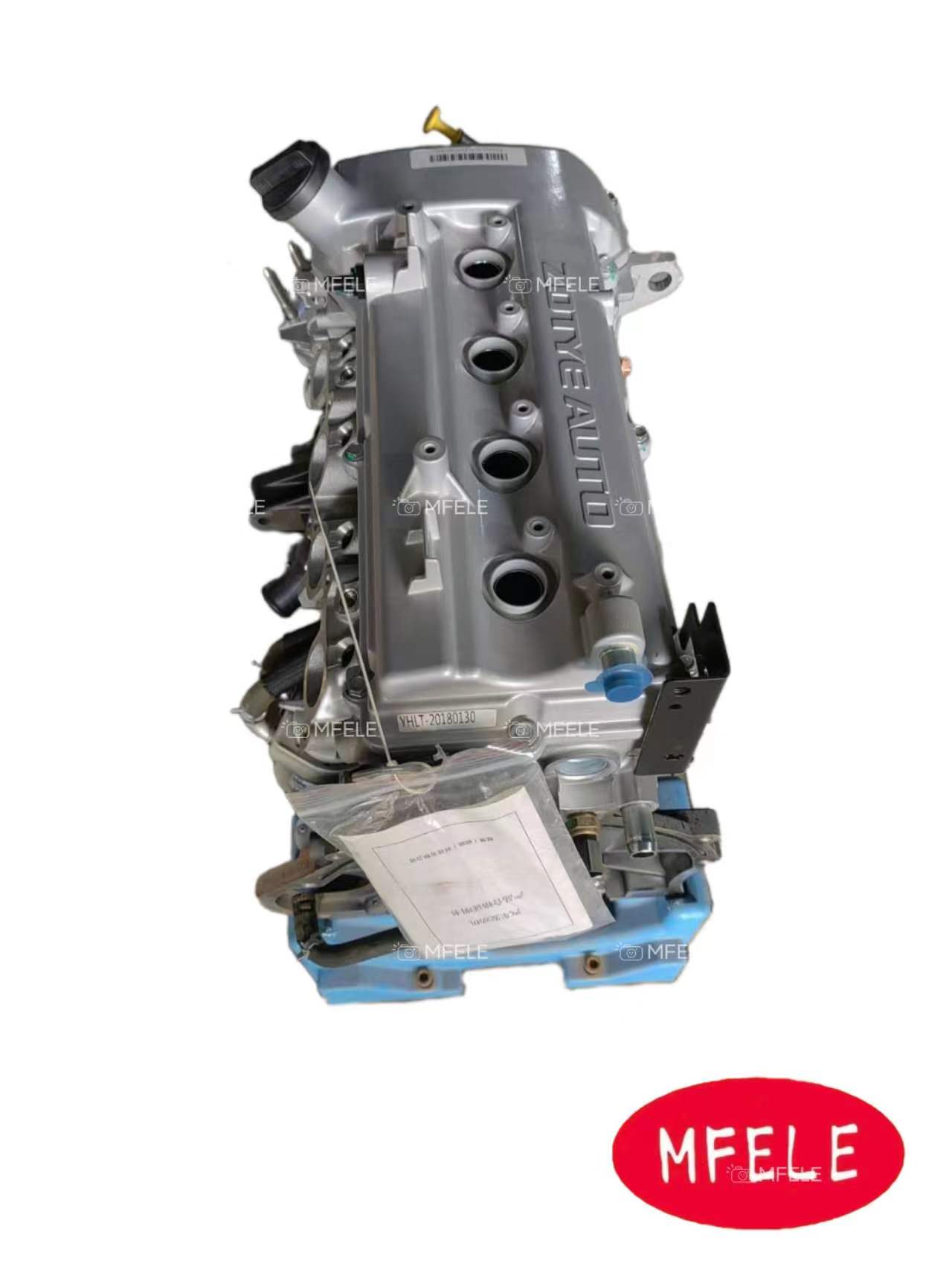

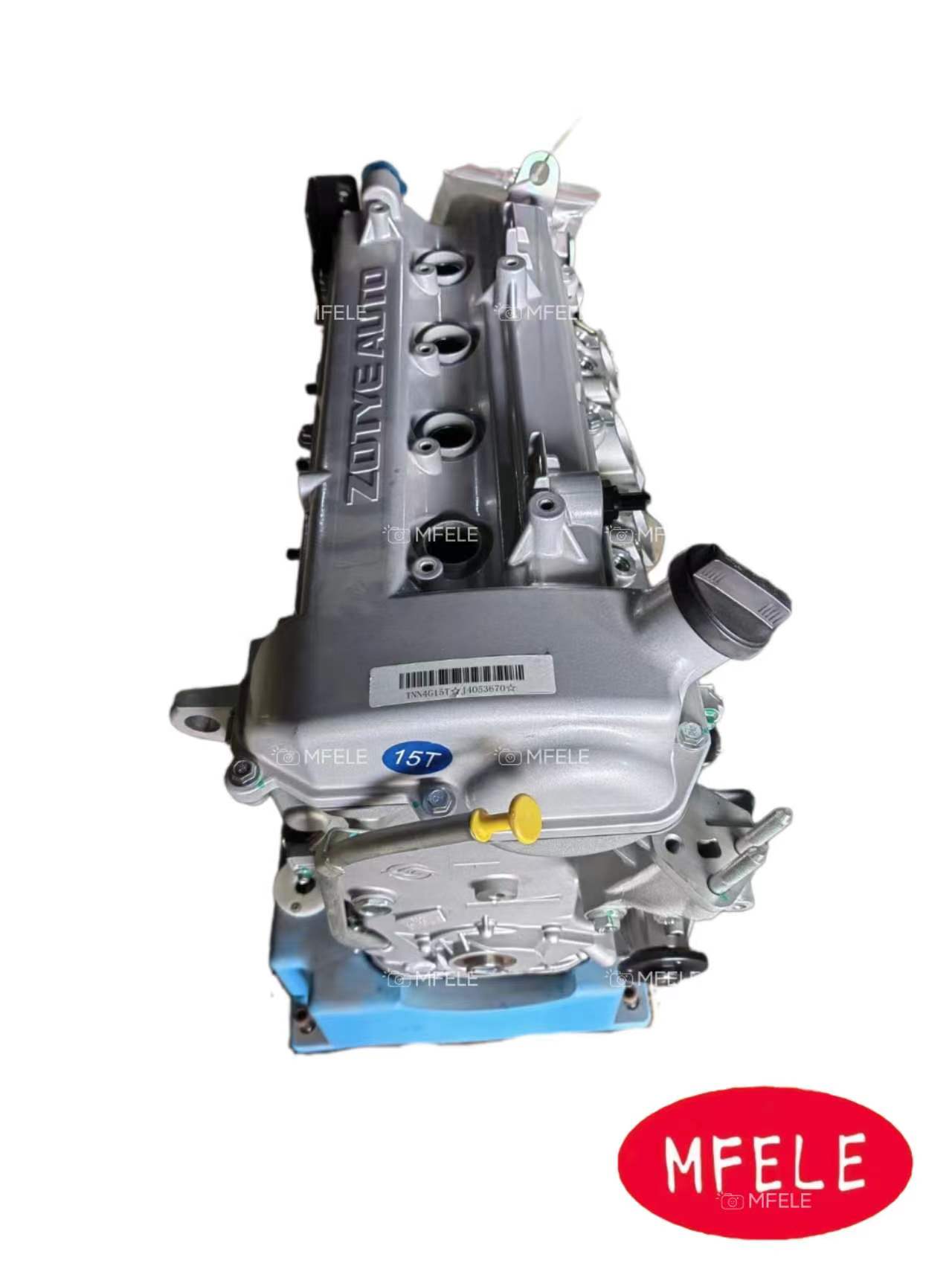

Design Features: The TNN4G15T engine adopts a design of "cast iron middle cylinder aluminum cylinder head".
design combines the strength of cast iron with the lightweight advantage of aluminum, making the engine both
robust and lightweight.
Technical Specifications: The engine has a maximum output power 115kW (approximately 156 horsepower), a
maximum torque of 207N·m, a maximum power speed of 500rpm, and a maximum torque speed of 4000rpm.
Its compression ratio is 9.3, with a cylinder bore and stroke 75mm and 84.8mm respectively.
Performance: The TNN4G15T engine has a power performance comparable to the Volkswagen1.4TSI engine,
with strong power output. Its acceleration performance is excellent, with a 0-100km/h acceleration time of
only11.35 seconds, a fuel consumption of only 7.9 liters per 100 kilometers, and a braking distance of 39 meters.
Fuel Economy: The engine performs excellently in terms of fuel economy, with a fuel consumption of only 7.9 liters
per 100 kilometers, industry high standards.
Applicable Vehicle Models
Tunma models
Zotye T300 15T models
