Main  features:

Dual VVT (Variable Valve Timing) on both intake and exhaust sides: Improves the efficiency of air intake and exhaust.

Electronically variable displacement oil pump: Automatically adjusts the oil supply based on engine load and speed.

Low inertia exhaust turbine: Reduces turbine lag and enhances low-speed torque output.

GCCS (Gasoline Combustion Control System) technology: Improves combustion efficiency and reduces emissions.

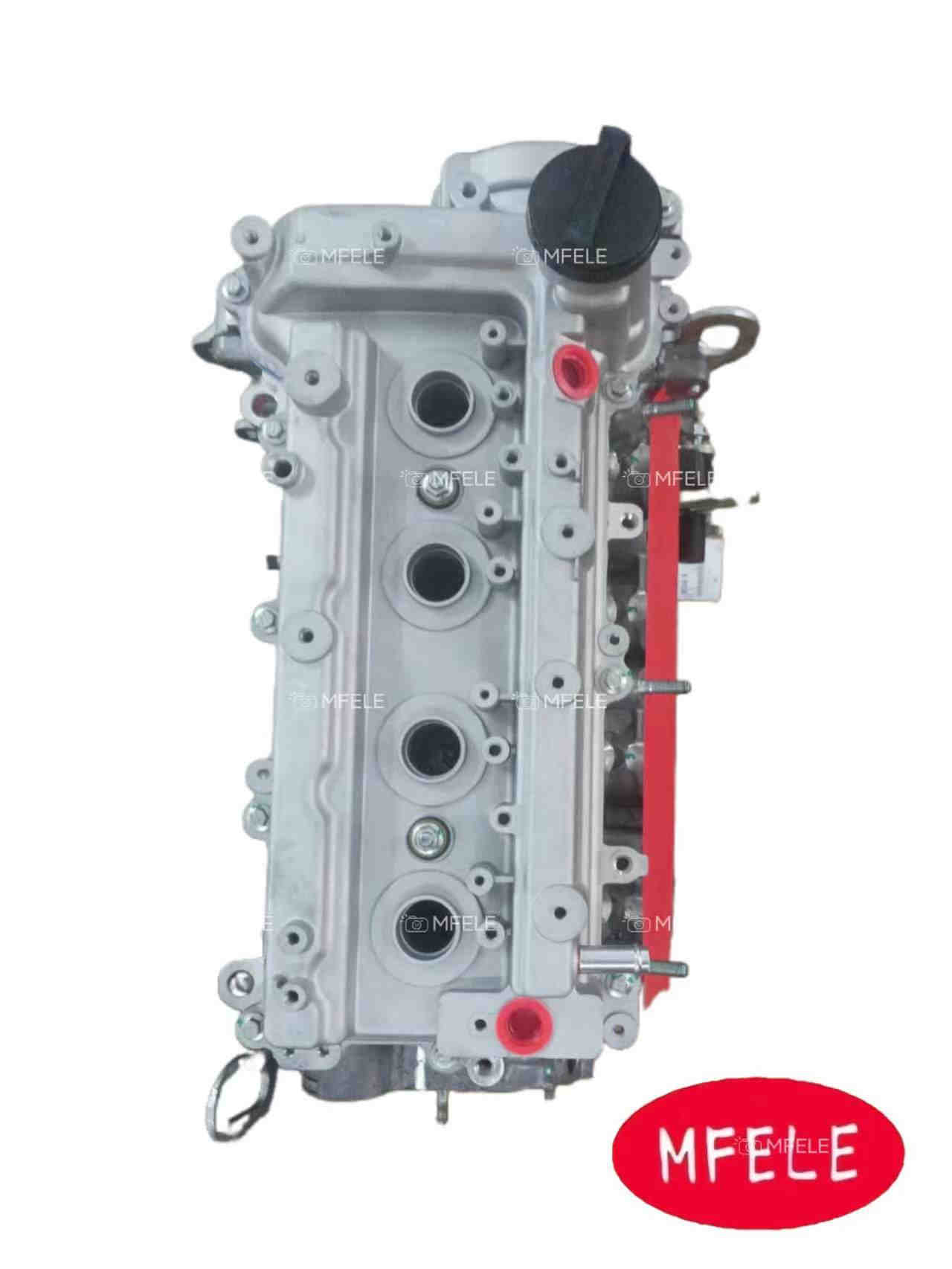

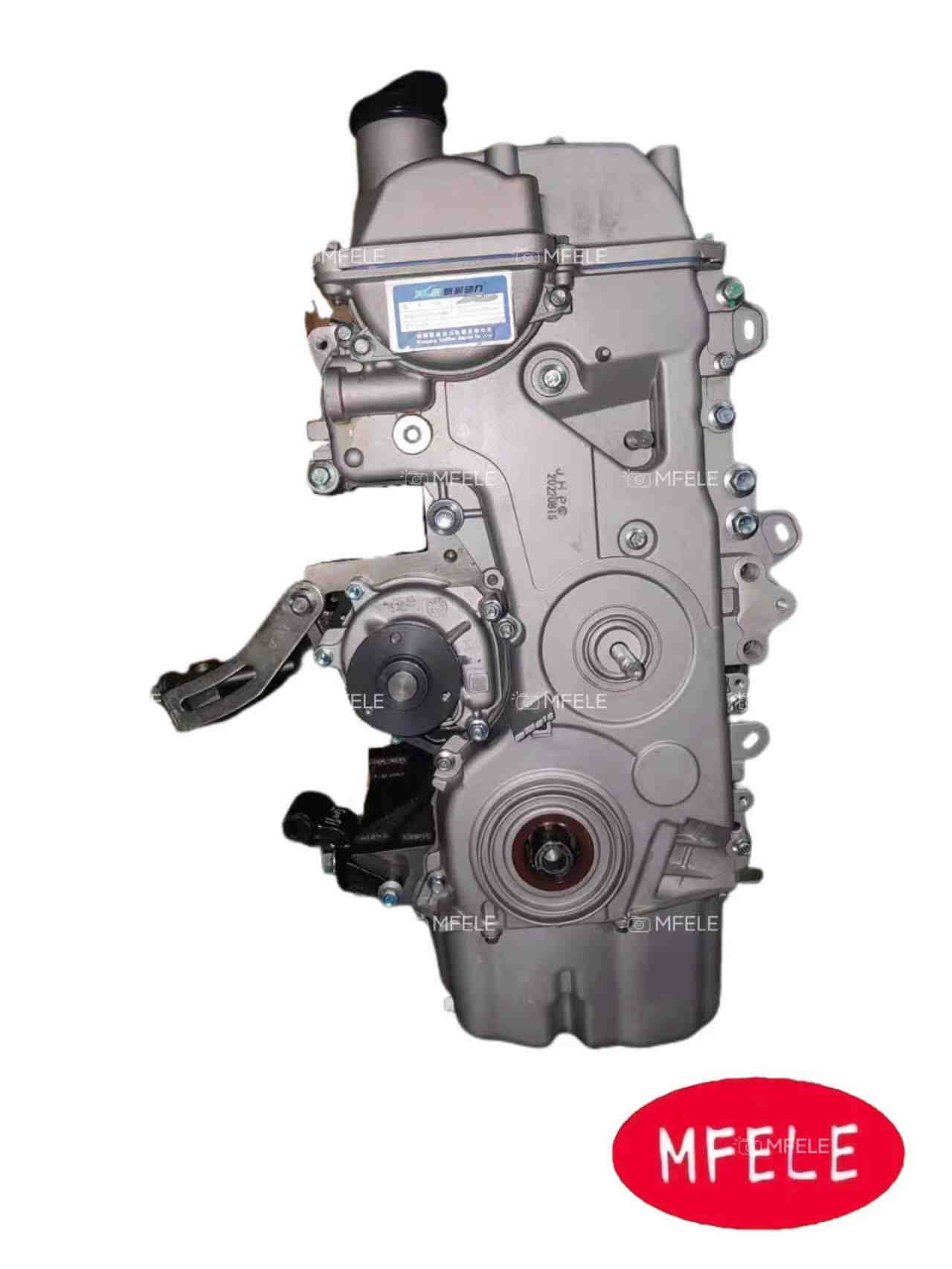

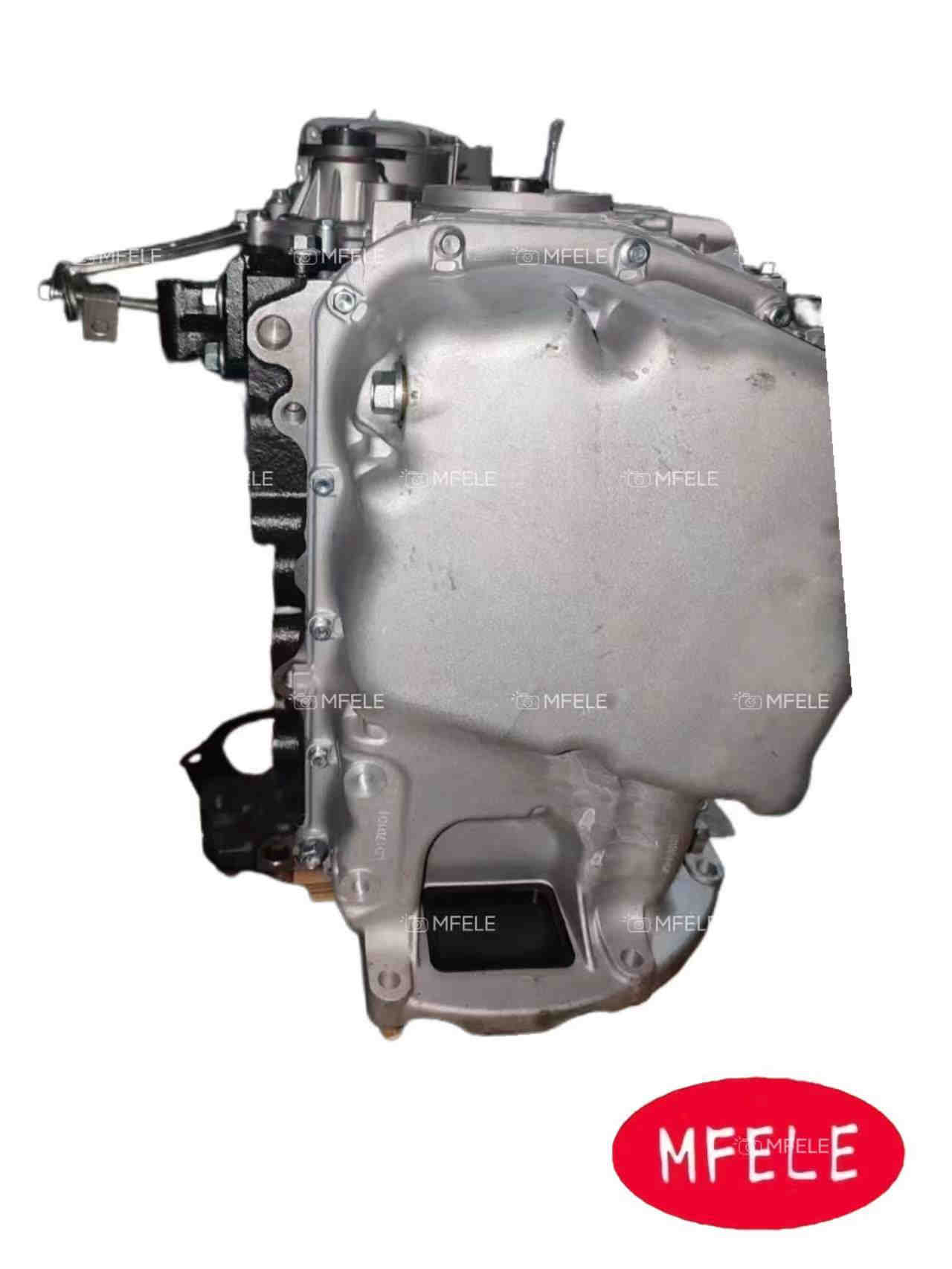

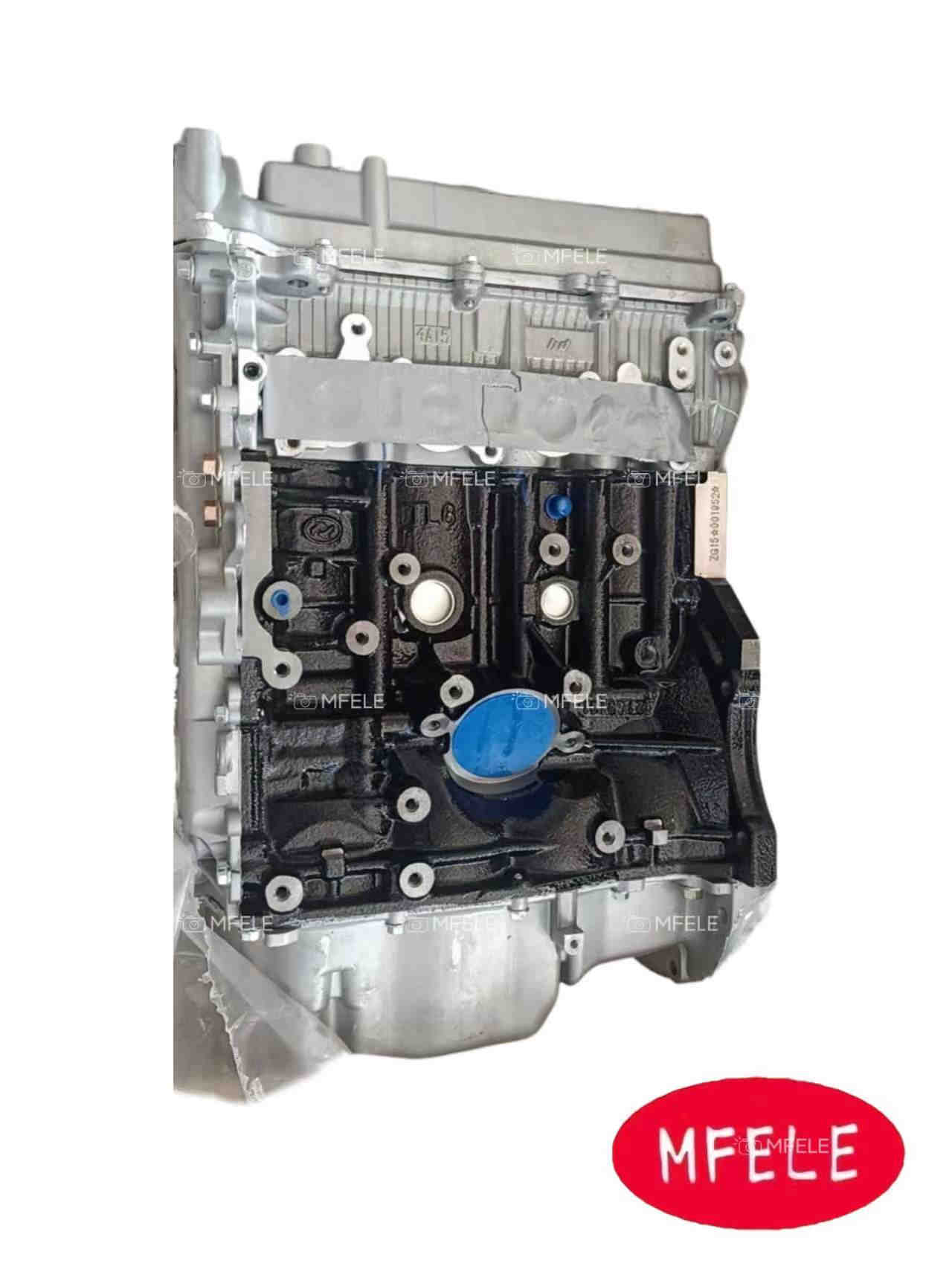

The 4A15 engine is widely used in the Trumpchi GM6 and GS5 models.


Main parameters:

Displacement: 1.495L

Maximum Power: 75kW (102HP), reaching rated power at5600-6000rpm.

Maximum Torque: 135N·m, reaching maximum torque at 40004600rpm.

Compression Ratio: 10:1. Bore×Stroke: 72mm×91.8mm.

Idle Speed: 750±50 r/min.

Minimum Fuel Consumption Rate: ≤255 g/kW·h.

Engine configuration: Inline-four, four-stroke, water-cooled, naturally aspirated,

DOHC (dual overhead camshafts), 6V (16 valves), VVT (variable valve timing system),

 DIS (independent ignition system), ETC (electronic throttle control)
