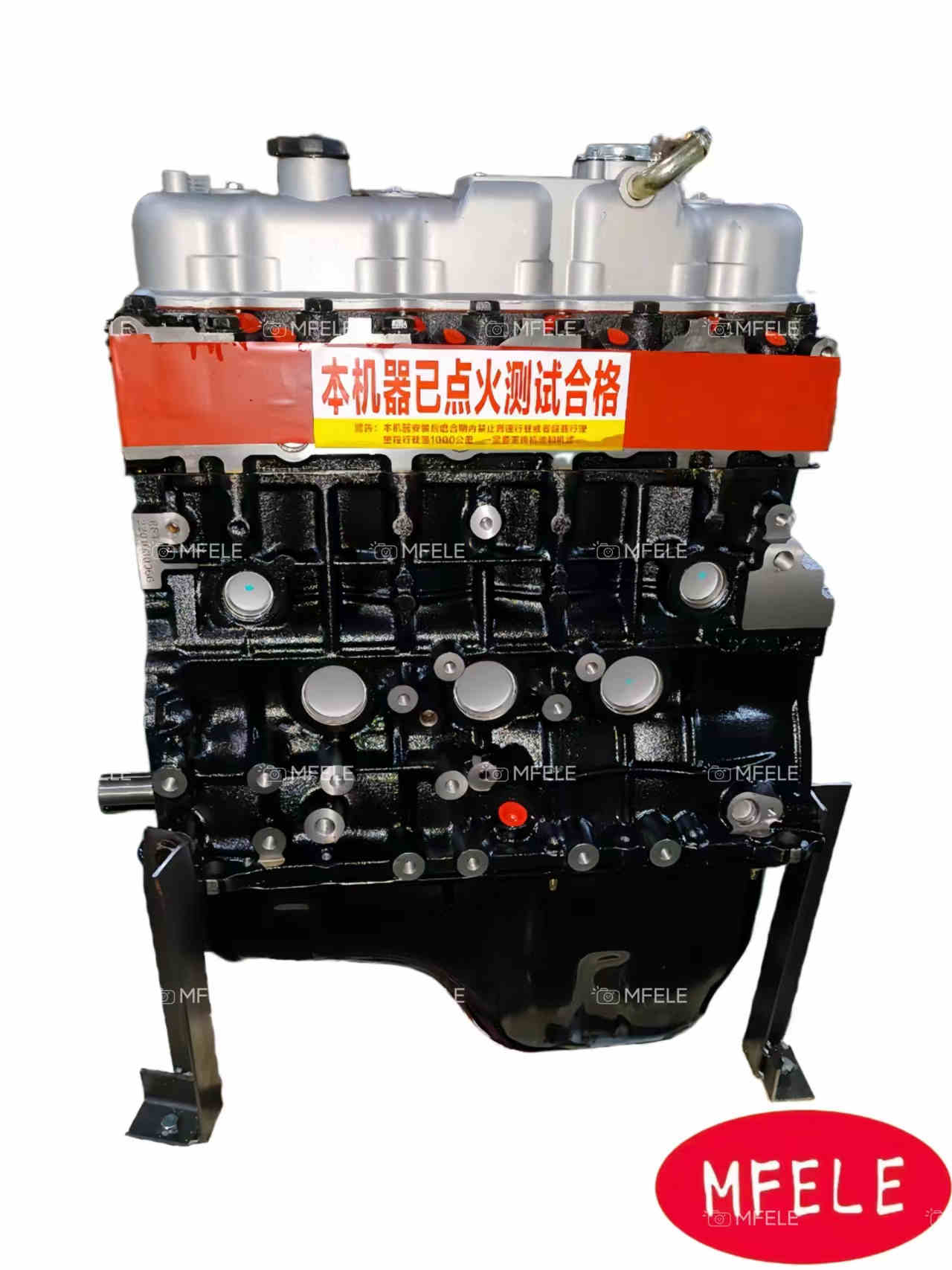

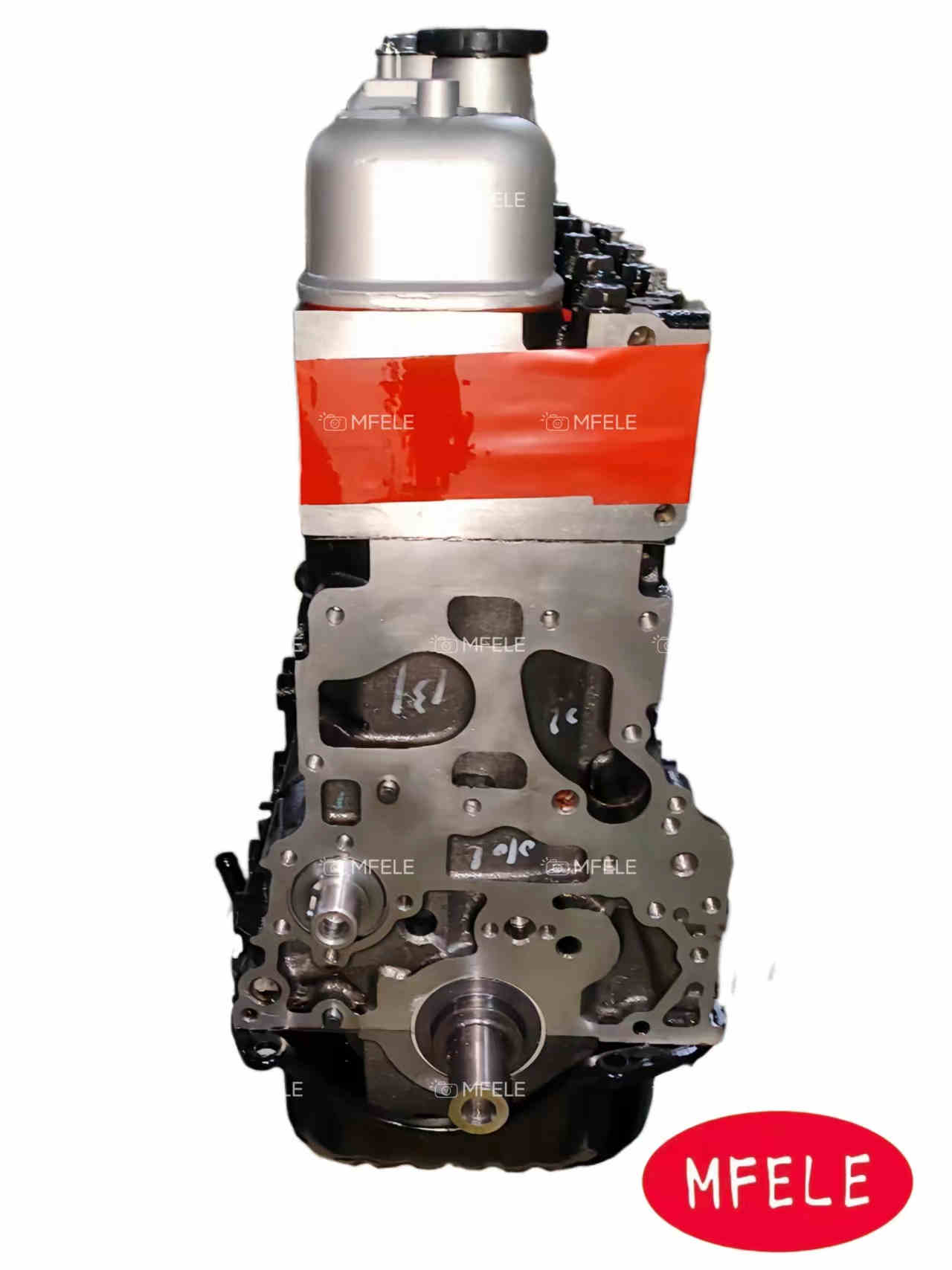

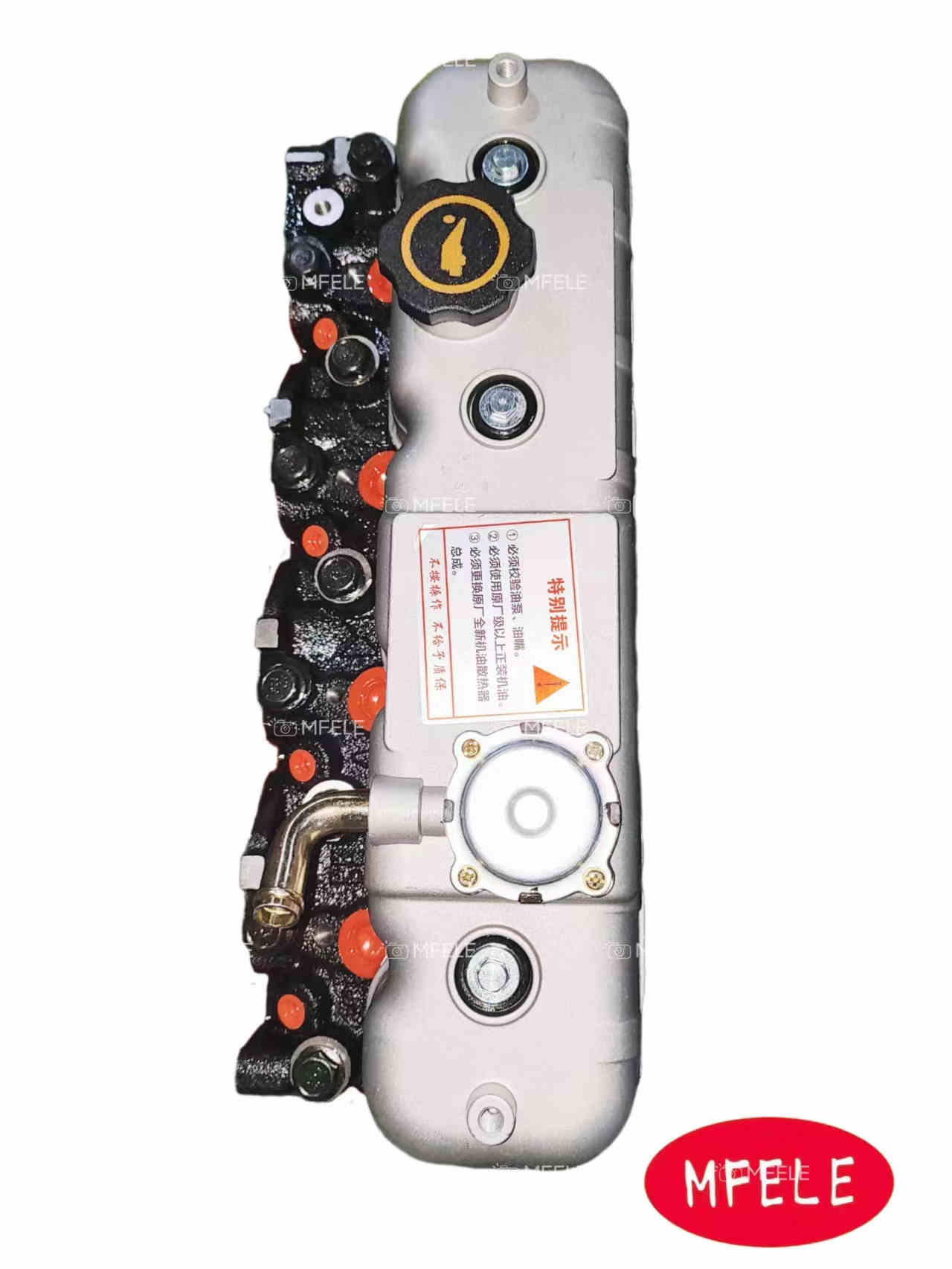

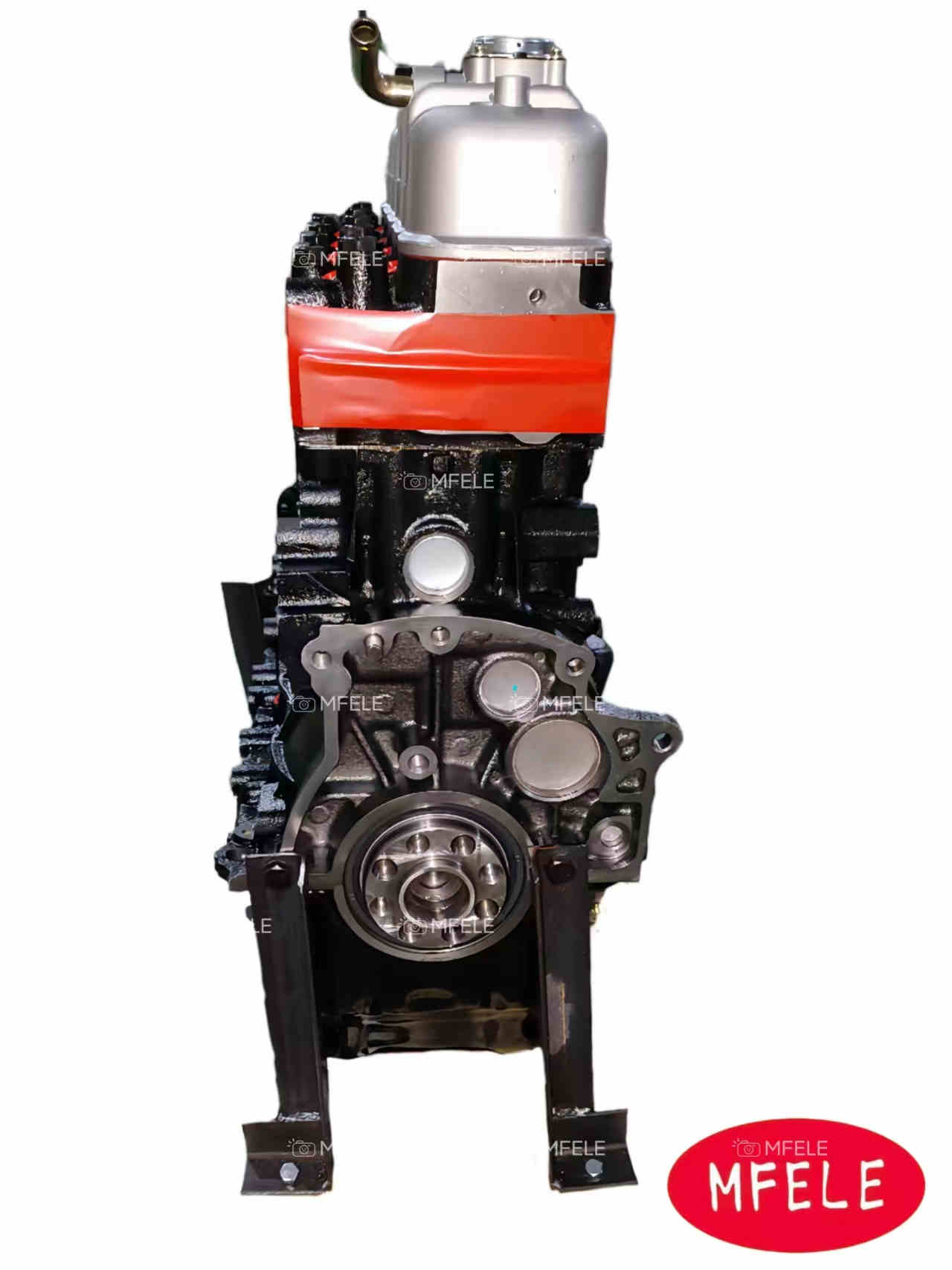

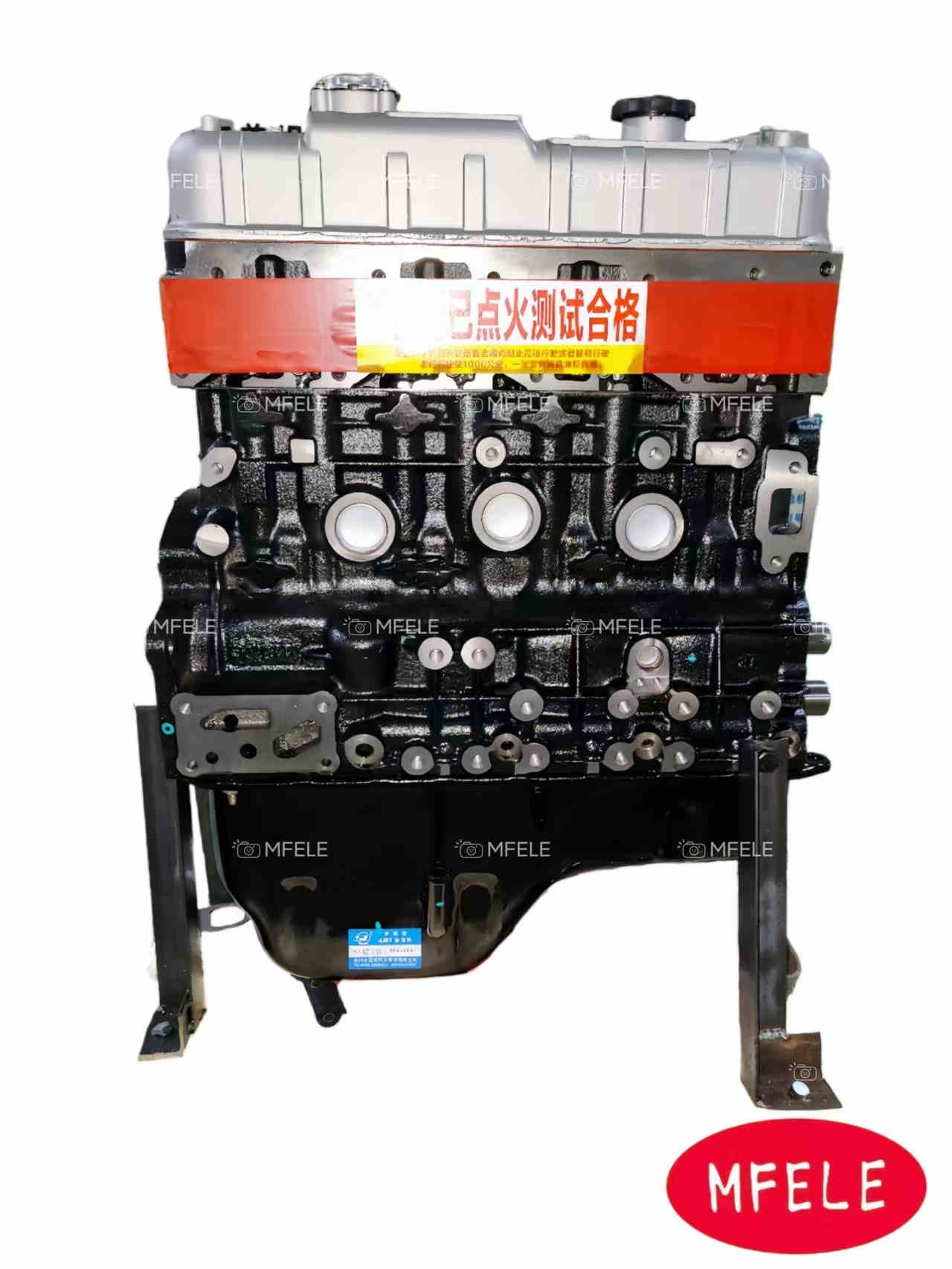

The features of the 493LQ5 engine include powerful output, high fuel efficiency,

and intelligent heat dissipation design.

    The engine has a maximum power of 85kW (116 horsepower) and a maximum torque

of 285N·m, capable of delivering torque at 1800-2200rpm, providing excellent acceleration

performance and sustained driving force. To ensure efficient operation, the 49LQ5 engine is

designed with an intelligent heat dissipation grille that enhances air intake, improves

combustion efficiency, and enhances heat dissipation performance, further reducing fuel to

a minimum of 8L per 100 km. Additionally, the engine is equipped with common rail

technology and a turbocharged intercooler system further enhancing its performance and

reliability.



    The 493LQ5 engine is suitable for various vehicle models, mainly including light trucks, light

buses, and medium-sized buses. Vehicle models have wide applications in commercial

transportation, logistics delivery, and other fields, and can meet the needs of different users.


Main Parameters: ‌

Series‌: 493 Series ‌

Application Range‌: Light Trucks, Light Vans, Medium B

‌Intake Type‌: Turbocharged with Intercooler

‌Number of Cylinders‌: 4 Cylinders ‌

Fuel Type‌:Diesel

‌Cylinder Arrangement‌: Inline ‌

Displacement‌: 2.771L ‌

Emission Standard‌: Euro V  ‌

Maximum Power Output‌: 85kW (116 HP) ‌

Rated Speed‌: 3800rpm (Some sources 3200rpm)

‌Maximum Torque‌: 285N·m ‌

Maximum Torque Speed‌: 180-2200rpm ‌

Engine Type‌: Inline, Water-cooled, Common Rail, Turbocharged with Intercooler, Four-stroke ‌

Net Weight‌: 250kg ‌

Engine Dimensions‌: 689×793×675mm (Some sources indicate742mm x 634mm x 718mm) ‌

Bore x Stroke‌: 93×102mm
