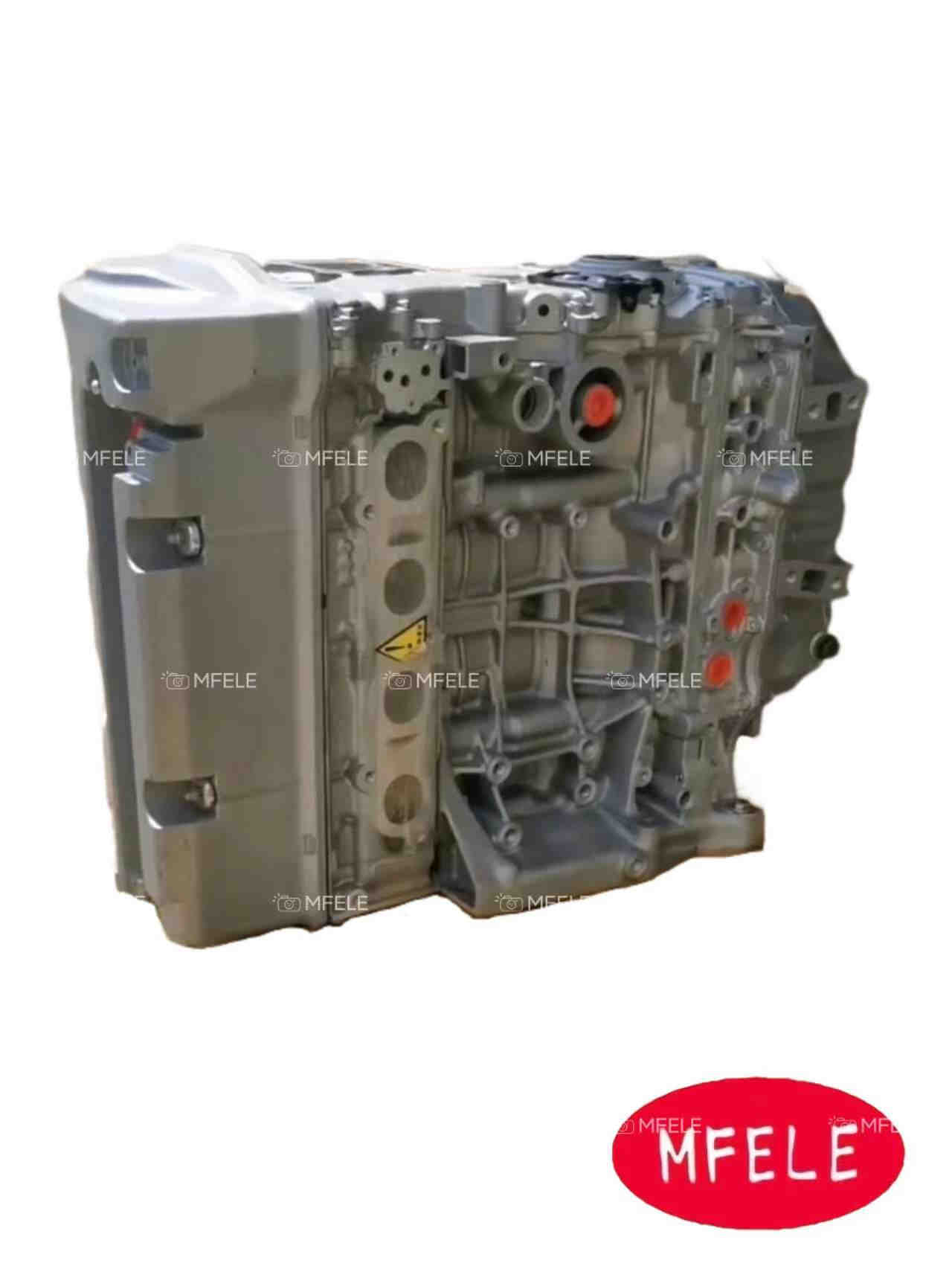

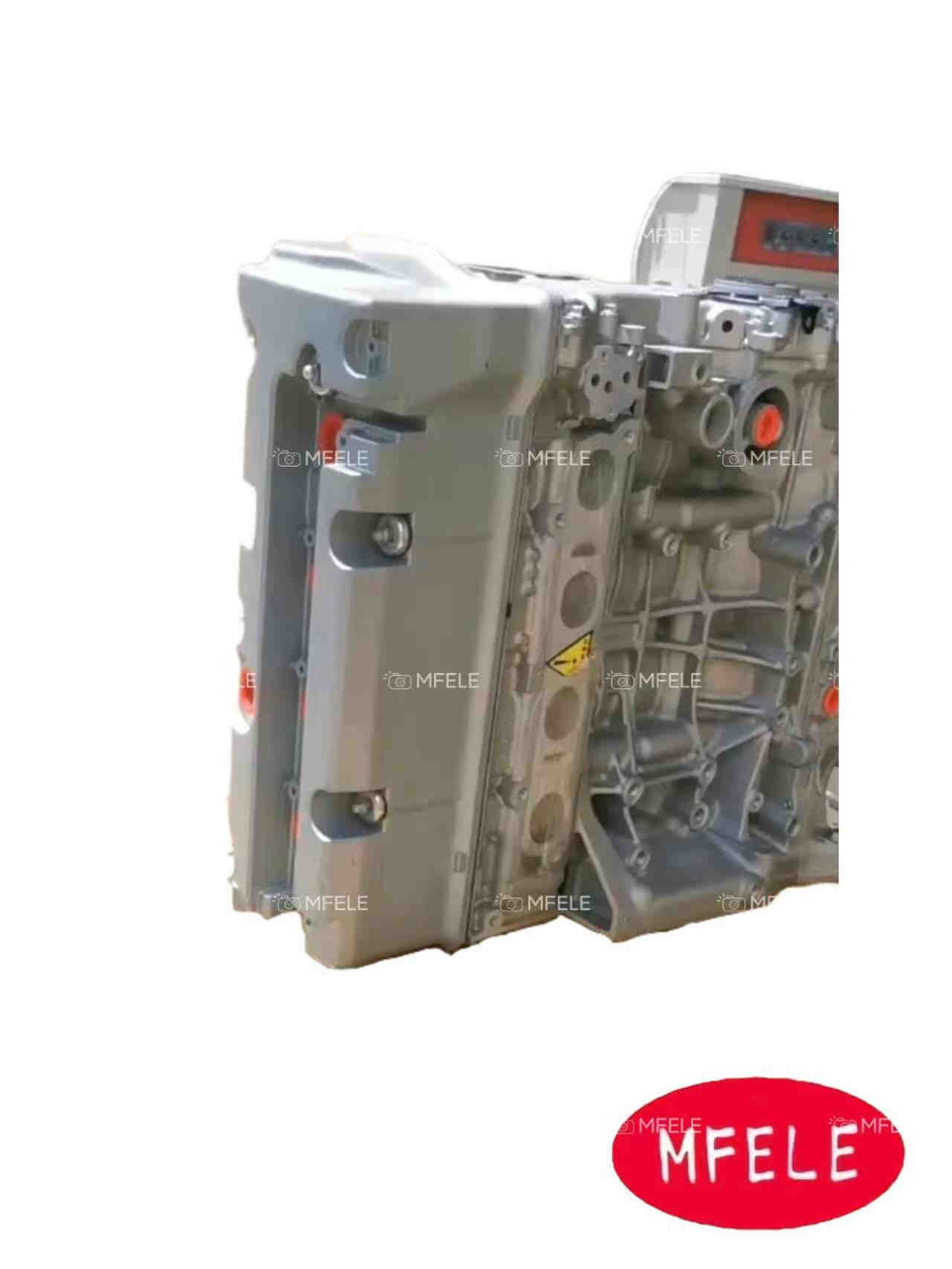

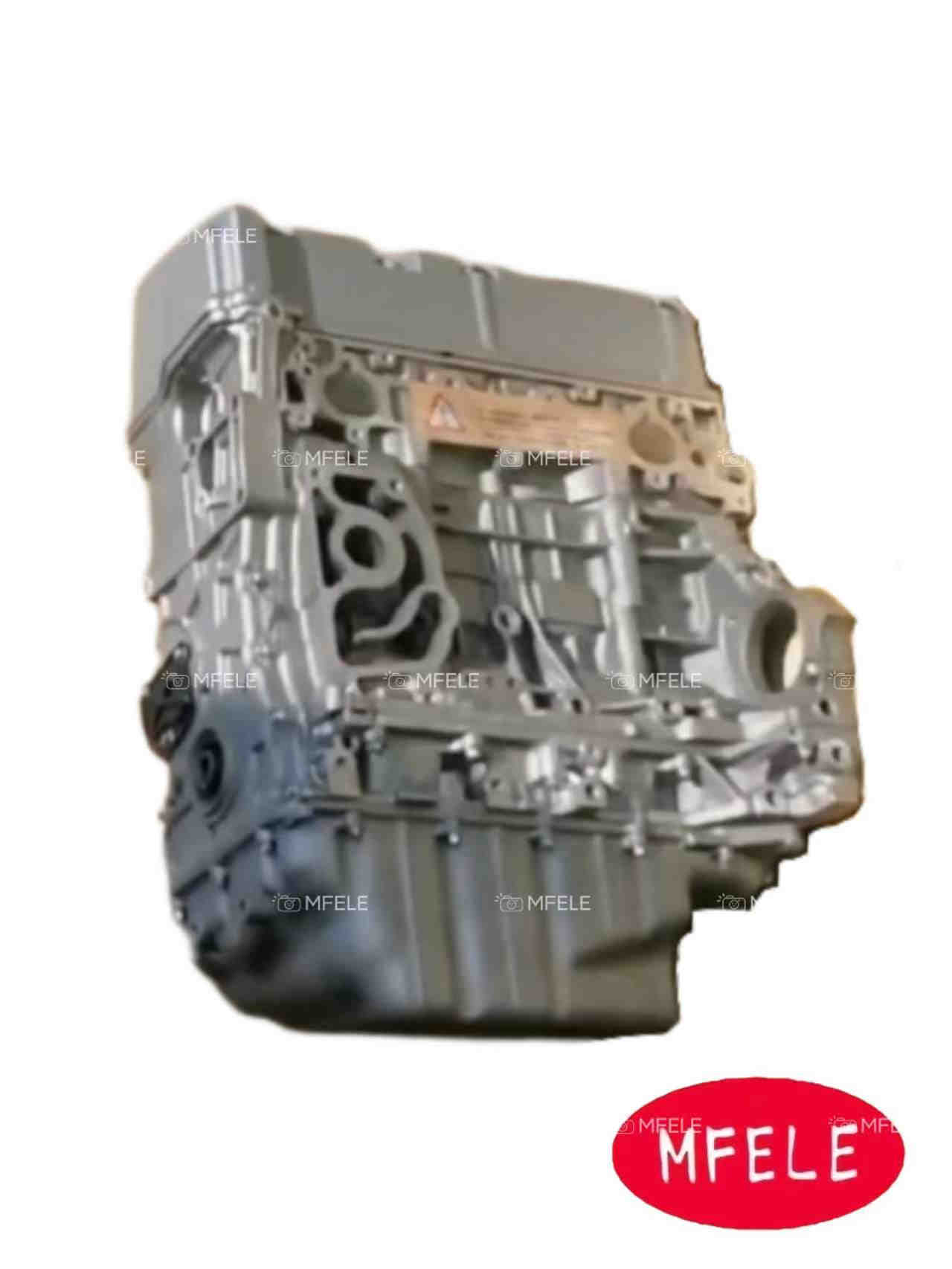

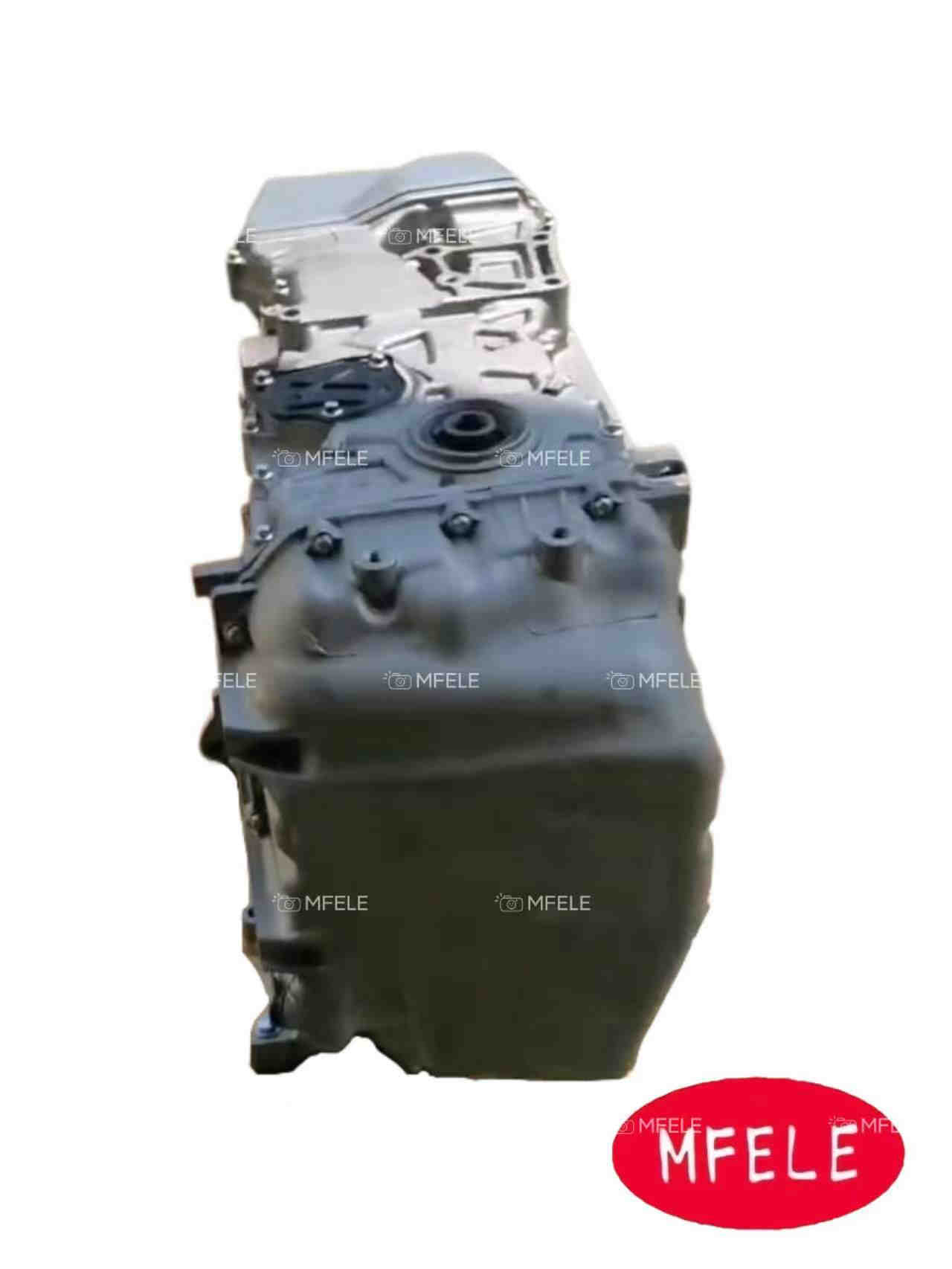

    The characteristics of the K24Z1 engine include a maximum power of 125kW/5800rpm and maximum torque

of 220Nm/4200rpm. The engine has a displacement of 2354cc, a compression ratio of9:7:1, and uses a

programmed fuel injection system, with an effective fuel consumption rate of 9.8 liters/100 kilometers.

The24Z1 engine is a water-cooled, four-stroke, inline-four, 16-valve design, equipped with I-VTEC andTC

technology, which can achieve an ideal balance between high power output and fuel economy.


The K24Z1 engine is primarily used in the following models:

Honda CR-V: 2007-2009 models

Honda Accord LX/LX-P: 2008-2012 models

Honda Accord LX-S/EX/-L: 2008-2012 models

Acura TSX: 2009-2014 models

Main parameters:

 Displacement: 2354cc

Maximum Power: 125kW (170Ps) @ 580rpm

Maximum Torque: 220Nm @ 4200rpm

Rated Speed: 4300rpm

Idle Speed: 650rpm

Number of Cylinders: 4 cylinders

Number of Valves: 16 valves

Compression Ratio: 9:7:1

Fuel Type: Gasoline

Emission Standard: Euro IV

Fuel Supply Method: Multi-point injection Cylinder

Bore x Stroke: 8.0mm x 99.0mm
